Description

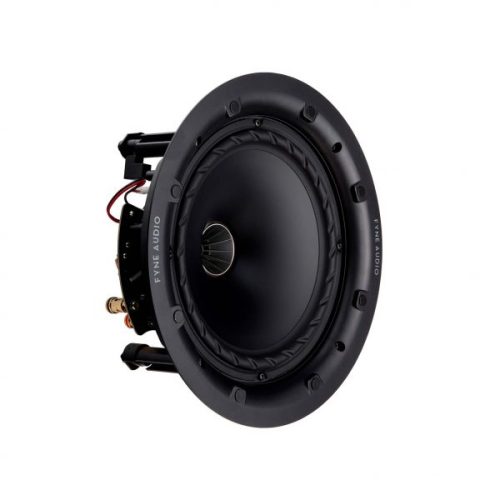

| System Type | 2 way IsoFlare loudspeaker for in ceiling or in wall application |
| Recommended amplifier power (Watt RMS) | 30 – 150 |
| Peak power handling (Watt) | 300 |
| Continuous power handling (Watt RMS) | 75 |
| Sensitivity (2.83 Volt @ 1m) | 91dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 35Hz – 34kHz |
| Drive unit complement | 1 x 200mm (8”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter |
| Crossover frequency | 1.7kHz |
| Crossover type | Passive 2nd order low pass, 1st order high pass |
| Dimensions – Dia x Depth | 273 x 123mm (10.6” x 4.8”) |
| Square grille dimensions | 281 x 281mm (11.1 x 11.1”) |
| Round grille diameter | 281mm (11.1”) |
| Cut-out diameter | 248mm (9.8”) |
| Depth behind mounting surface | 120.5mm (4.7”) |
| Clamp travel | 5 – 50mm (0.2 – 2.0”) |
| Suggested min volume | 18 L |
| Weight – Each | 2.5kg (5.5lbs) |
|
Notes: |
|
