Description

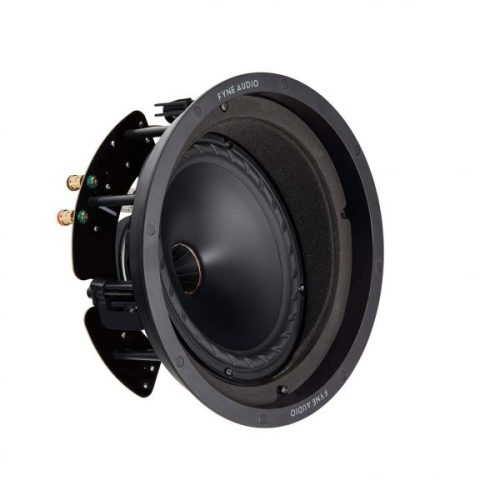

| System Type | 2 way IsoFlare loudspeaker for in-ceiling or in-wall application angled dispersion for LCR applications |
| Recommended amplifier power (Watt RMS) | 30 – 150 |
| Peak power handling (Watt) | 300 |
| Continuous power handling (Watt RMS) | 75 |
| Sensitivity (2.83 Volt @ 1m) | 91dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 35Hz – 34kHz |
| Drive unit complement | 1 x 200mm (8”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter |
| Crossover frequency | 1.7kHz |
| Crossover type | Passive 2nd order low pass, 1st order high pass |
| Dimensions – Dia x Depth | 278 x 157mm (10.9 x 6.2”) |
| Square grille dimensions | Not Available |
| Round grille diameter | 288mm (11.3”) |
| Cut-out diameter | 255mm (10.0”) |
| Depth behind mounting surface | 155mm (6.1”) |
| Clamp travel | 0 – 26mm (0 – 1.0”) |
| Suggested min volume | 18 L |
| Weight – Each | 2.4kg (5.2lbs) |
|
Notes: |
|
