Fyne Audio FA302iC

204.00€

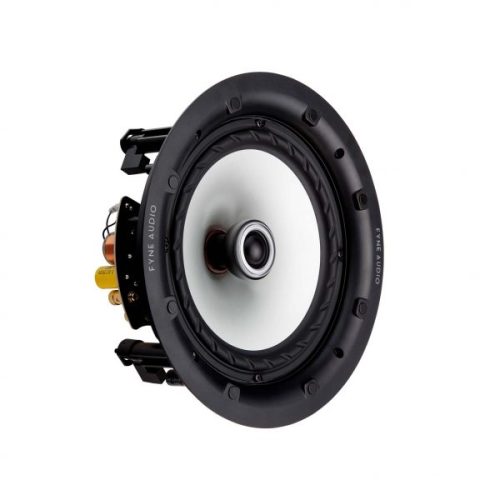

The potent 200mm (8”) multi-fibre bass / midrange driver and 25mm soft dome polyester tweeter, the FA302iC is a home installation powerhouse. High power handling, bass down to below 40Hz and adjustable tweeter pod to direct the sound give this model audiophile quality performance. Derived from Fyne’s larger F300 series models, the FA302iC feature the FyneFlute roll surround for improved bass detail and a high specification crossover tuned to get the very best from in-ceiling or in-wall position.

Easy to fit clamps, spring cable terminals and a cut-out template make for easy custom install, and the round low profile magnetic grille (square grille available as optional extra) sits almost flush to the surface.

FA302ic-3Q-Rear-large-600×600FA302ic-3Q-Rear-large-600×600
FA302ic-Grille-On-square-large-600×600FA302ic-Grille-On-square-large-600×600
FA302ic-Grille-On-Round-large-600×600FA302ic-Grille-On-Round-large-600×600
FA302ic-Grille-Off-Front-large-install-1-600×600FA302ic-Grille-Off-Front-large-install-1-600×600
FA302ic-Grille-off-3Q-large-600×600FA302ic-Grille-off-3Q-large-600×600

Available on backorder

SKU: FA302iC Categories: ,

Description

System Type 2 way co-axial loudspeaker for in ceiling or in wall application, steerable HF unit
Recommended amplifier power (Watt RMS) 25 – 120
Peak power handling (Watt) 240
Continuous power handling (Watt RMS) 60
Sensitivity (2.83 Volt @ 1m) 90dB
Nominal impedance 8 Ohm
Frequency response (-6dB typical in room) 37Hz – 28kHz
Drive unit complement 1 x 200mm multi-fibre bass / midrange cone, FyneFlute surround with 25mm Co-axial polyester dome tweeter
Crossover frequency 2.8kHz
Crossover type Passive 2nd order low pass, 1st order high pass
Dimensions – Dia x Depth 273 x 115mm (10.7 x 4.5”)
Square grille dimensions 281 x 281mm (11.1 x 11.1”)
Round grille diameter 281mm (11.1”)
Cut-out diameter 248mm (9.8”)
Depth behind mounting surface 112.5mm (4.4”)
Clamp travel 5 – 50mm (0.2 – 2.0”)
Suggested min volume 15 L
Weight – Each 2.1kg (4.7lbs)

Notes:
Bookshelf dimensions includes grille, terminals, and any plinth, but excludes feet. Floorstand dimensions includes grille, terminals and plinth, but excludes spikes. Subwoofer dimensions include feet. All information was correct at the time of publishing. Fyne Audio Ltd reserve the right to amend details of the specification without notice in line with our policy for continuous improvements.

Additional information

Weight 2.1 kg
